Product Overview
Quick Highlights

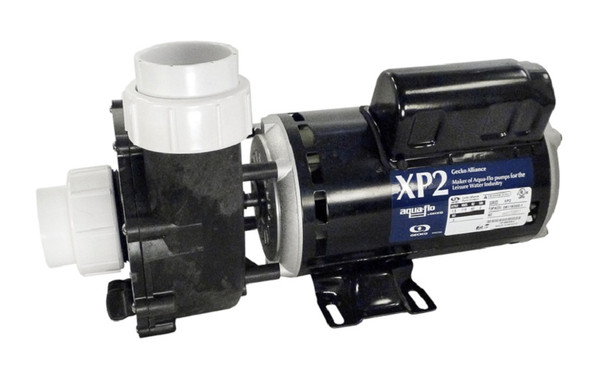

- Aqua-Flo part number 06115000-1040
- Flo-Master XP2 spa pump
- Standard 48 frame motor
- Maximum cost efficiency
- High volumetric volute design
- Whisper quiet operation
- Fine tuned impeller for maximum efficiency
- Flow rate 140 GPM
- True, continuous rated horsepower of 1.5 (operational hp)
- Total rated horsepower of 2.0
- Accepts 2" Plumbing
- Inside Ports Measure 2-3/8"
- Outside Threads Measure 3"
- 2 speeds
- 115V
Product Description
The Aqua-Flo 06115000-1040 XP2 spa pumps easily outperform every other 48 frame pump on the market while utilizing the same space requirements. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, many-jetted spas requiring increased flow.
Replaces the following pump models:
06615456-2
06617763-2
06615686-2
06115
1-00-0133
06615890-1
06615686-2
06115484-2
06118371-2
06615763-1
06118437-2
06115511-2 Coleman Spa
06615686-2
06615607-1
06614510-2 1.75 HP
06115319-2
06610323-2
06610510
06610510-2
06115007-5
Freeflow 303007
Freeflow 77269
Technical Specs
Suction Connection Size: 2"
Connection Type: MBT
Discharge Connection Size: 2"
Connection Type: MBT
Operational Horsepower: 1.5 HP
Total Horsepower: 2 HP
Motor Speed: 2-Speed
Motor Frame: 48 Frame
Motor Amperage: 15.0A/3.9A
Motor Voltage: 115V
Model: XP2
Impeller Number: 91694150
