Product Overview
Quick Highlights
- Executive wet end designed specifically for 56-frame motors
- 56-Frame motor for added strength, cooler operation and longer motor life
- 2 Double shielded ball bearings w/ moisture resistant grease for quiet operation
- Large 6.5" diameter wet end for higher head pressure
- Split capacitor, (start & run) for less energy consumption
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90 degrees
- Chemical resistant Viton shaft seal
- 2" Suction x Discharge 2"
- Waterway model: 3721621-1D
- Horsepower: 4 HP
- Two Speed Motor
- Voltage: 230V
- 3-Year manufacturer's warranty
- Cross Reference: 5kcp49un9096x (Marathon motor number), PF-40-2N22C
Product Description

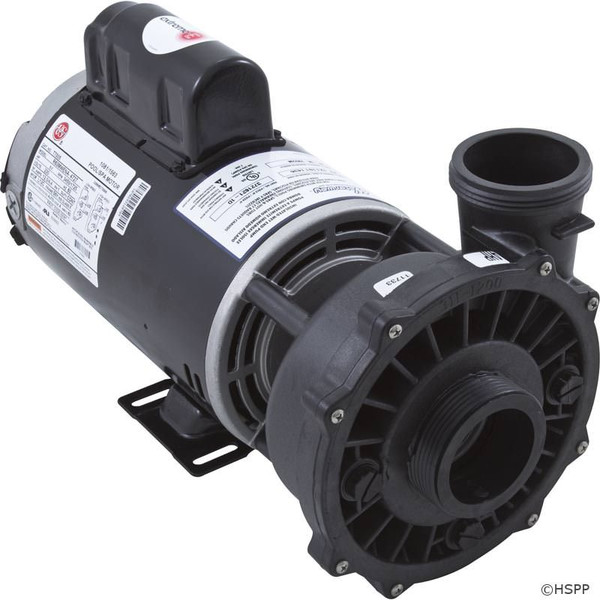

The Waterway Executive 56 Frame Spa Pump has highly versatile 6-1/2 inch diameter wet end designed for 56-Frame motors and higher head pressure that can be rotated every 90 degrees for multiple plumbing options. Executive 56 pumps come standard with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. Waterway Executive 56-Frame Pumps include an industry best 3 year manufacturer's warranty on the motor and wet end.
The Waterway Executive 3721621-1D Spa Pump has a 2" Suction (Intake) Connection and a 2" Discharge Connection. (For 2-1/2" suction x 2" discharge use part number 3721621-13).
Technical Specs
Suction Connection Size: 2"
Suction Connection Type: Male Buttress Thread (mbt)
Discharge Connection Size: 2"
Discharge Connection Type: Male Buttress Thread (mbt)
Operational Horsepower: 4HP
Speed: 2-speed
Motor Frame: 56 Frame
Motor Amperage: 12.0A/4.4A
Spa Pump Model: Executive
Manfufacturer Impeller Number: 310-4190
Motor Voltage: 230V
