Product Overview
Quick Highlights
- Executive wet end designed specifically for 48-frame motors
- Large 6.5" diameter wet end for higher head pressure
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90 degrees
- Chemical resistant Viton shaft seal
- 2" Suction x Discharge 2"
- Waterway model: 3421821-1A
- Horsepower: 4.5 HP
- Voltage: 230V
- Capacitor style may vary (1 or 2 capacitors on top)
Product Description

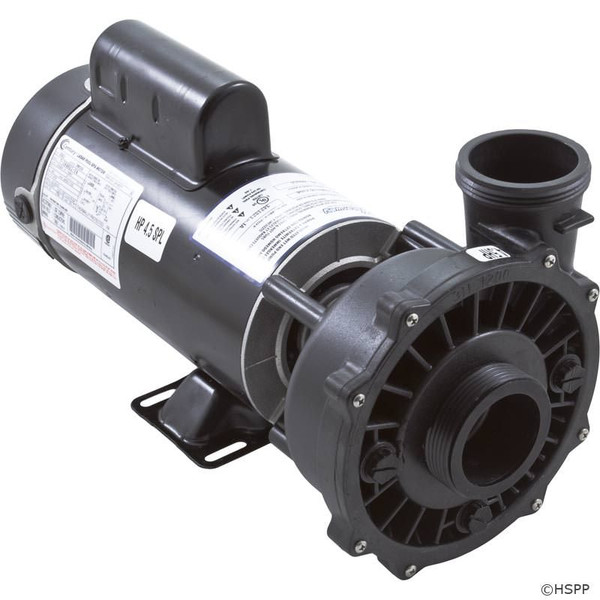

The Waterway Executive 48 Spa Pump is thermally protected which extends the motor's life expectancy and includes a highly versatile wet end that can be rotated every 90 degrees for multiple plumbing options. Waterway Executive 48-Frame Pumps include a 2 year manufacturer's warranty on the motor and a 3 year warranty on the wet end.
The Waterway Executive 3421821-1A Spa Pump has a 2" Suction (Intake) Connection and a 2" Discharge Connection. (For 2-1/2" suction x 2" discharge use part number 3421821-13).
Technical Specs
Suction Connection Size: 2"
Suction Connection Type: Male Buttress Thread (mbt)
Discharge Connection Size: 2"
Discharge Connection Type: Male Buttress Thread (mbt)
Operational Horsepower: 4.5hp
Speed: 2-speed
Motor Frame: 48 Frame
Motor Amperage: 12.0A/3.5A
Spa Pump Model: Executive
Manfufacturer Impeller Number: 310-4190
Motor Voltage: 230V
