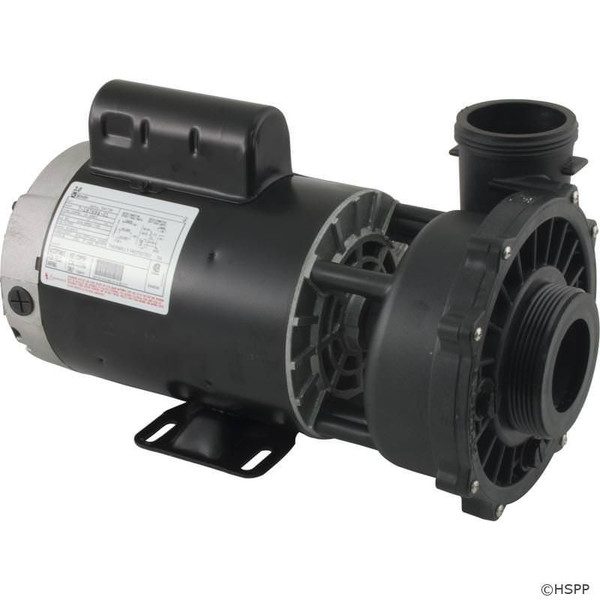

Product Overview
Quick Highlights
- Executive wet end designed specifically for 56-frame motors
- 56-Frame motor for added strength, cooler operation and longer motor life
- 2 Double shielded ball bearings w/ moisture resistant grease for quiet operation
- Large 2.5" intake for improved flow performance and reduced noise
- Large 6.5" diameter wet end for higher head pressure
- Split capacitor, (start & run) for less energy consumption
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90 degrees
- Chemical resistant Viton shaft seal
- 2.5" Suction x Discharge 2"
- Waterway model: 3721221-13
- Horsepower: 3 HP
- Two Speed Motor
- Voltage: 230V
- 3-Year manufacturer's warranty
Technical Specs
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 4a |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-11/16" od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2-1/2" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16" od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 3.0hp |
| Motor Frame | 56 Frame Thru-Bolt |
| Motor Amperage/Wattage | 10.0A/3.4A |
| Manufacturer | Waterway |
| Pump Model | Executive |
| Manufacturer Impeller Number | 310-4200 |
| Volute Fastening Type | 8 Screws |
| Volute/Sealplate Number | 315-1240 |
