Product Overview
Quick Highlights
- Executive wet end designed specifically for 48-frame motors
- Large 6.5" diameter wet end for higher head pressure
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90 degrees
- Chemical resistant Viton shaft seal
- 2" Suction x Discharge 2"
- Waterway model: 3420610-1A
- Horsepower: 1.5 HP
- Voltage: 115V
Product Description

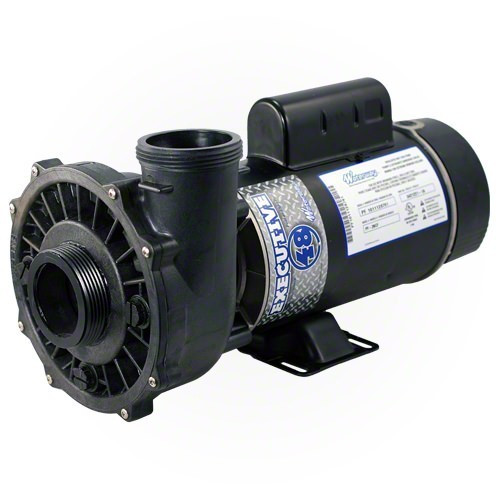

The Waterway Executive 48 Spa Pump is thermally protected which extends the motor's life expectancy and includes a highly versatile wet end that can be rotated every 90 degrees for multiple plumbing options. Waterway Executive 48-Frame Pumps include a 2 year manufacturer's warranty on the motor and a 3 year warranty on the wet end.
The Waterway Executive 3420610-1A 115V Spa Pump has a 2" Suction (Intake) Connection and a 2" Discharge Connection.
Technical Specs
Suction Connection Size: 2"
Suction Connection Type: Male Buttress Thread (mbt)
Discharge Connection Size: 2"
Discharge Connection Type: Male Buttress Thread (mbt)
Operational Horsepower: 1.5hp
Speed: 2-speed
Motor Frame: 48 Frame
Motor Amperage: 16.4A/4.4A
Spa Pump Model: Executive
Motor Voltage: 115V
