Product Overview
Quick Highlights

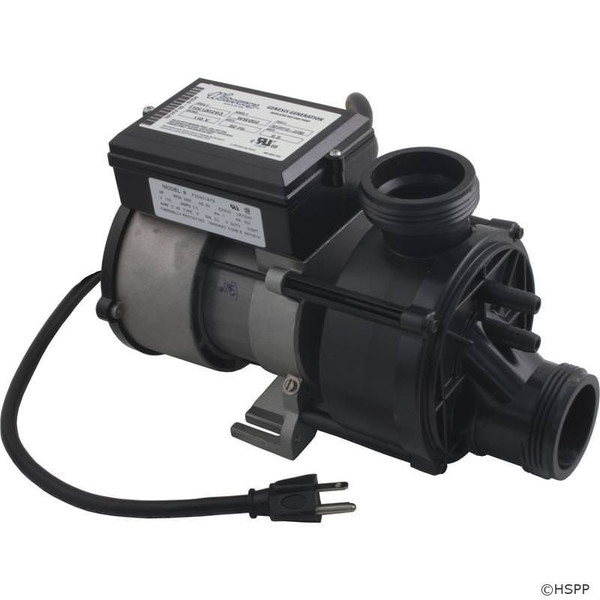

- Waterway part number 321FF10-1150
- Replaces Magna LD5A-C
- Center Discharge
- 1-1/2" intake and discharge
- 3' NEMA power cord
- Air switch
- Single Speed, 3450 RPM, 60 hz
- Dimensions: (H x W x L) 7.10" x 5.125" x 10.78"
Technical Specs
| Complete Pump Type | Bath Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | None |
| Suction Auxiliary Port | 3/8" barb (b) 1ea |
| Suction Style | Bottom |
| Suction Connection (Physical Dimension) | 2-7/16" od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Auxiliary Port | 3/8" barb (b) 1ea |
| Discharge Style | Center |
| Discharge Connection (Physical Dimension) | 2-7/16" od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Motor Amperage/Wattage | 5.5A |
| Manufacturer | Waterway |
| Pump Model | Genesis |
| Volute Fastening Type | 4 Bolts |
