Product Overview
Quick Highlights
- Raypak part number 009833
- D-2 Power Vent
- Compatible for indoor or outdoor installation

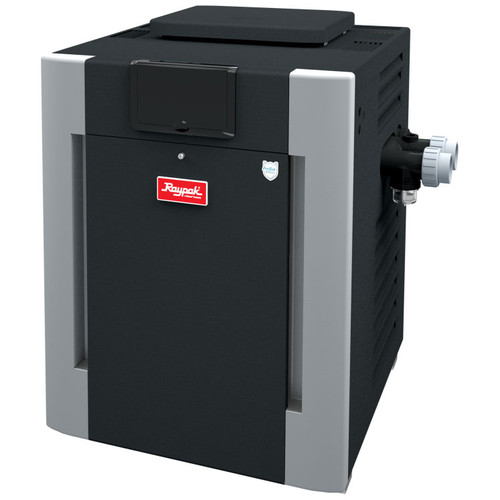

- For use with Raypak Digital 336A thru 407A models
- D-2 replaces the standard draft hood
- Tested and certified to the latest edition of the American National Standard ANSI Z21.56 for pool heaters
- Through-the-Wall Capable
- Multi-Position using a field-supplied adjustable 90° elbow, the flue gases may be discharged in any direction
- Dual-Voltage Induced-Draft Blower (120/240 VAC) (Can be field rewired for 120V)
- Equipped with a draft proving switch ensures that the blower is operating before operating your heater
- Solid state control allows the blower to purge any residual gas buildup in the heater after the heater has shut down
- Vent (Category III) runs up to 100 feet equivalent length
- 3200 RPM Motor
- Maintains thermal efficiency of 82% on all heater sizes
- Heavy duty galvanized steel cabinet
- PolyTuf textured powder coat finish
- Mounted and wired fan motor relay
Technical Specs
Voltage: 120/240 VAC
Models: 336A to 407A Digital
Application: Indoor, Outdoor
