Product Overview
Quick Highlights
- Pentair part numbers SD80, 145333, EC-145333
- Replaces: PAC-05-0082, PENEC-145333
- One-piece thermoplastic tank
- Exceptional strength, corrosion resistance, and long life
- Combination water and sand drain
- Quick, easy servicing and winterizing
- Special internal design keeps sand bed level
- Superior filtration performance and efficient backwashing
- Consistent performanc, extended time between cleanings
- Attractive almond color blends with any outdoor decor
- Top Mount 6-function 1-1/2" multi-port valve included
- Features a pressure gauge and manual air relief
- One-year limited manufacturer's warranty
Product Description

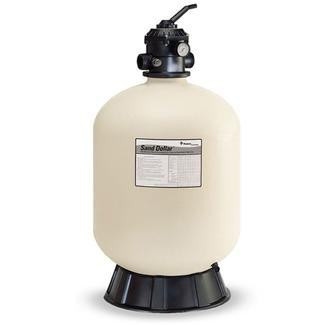

<p>The Pentair SD80 Sand Dollar Pool Filter has a flow rate of 75 gallons per minute and is ideal for inground pools. The multiport valve of the Sand Dollar filter puts all filter functions right at your fingertips - just rotate the handle to the desired position and Sand Dollar does the rest for sure and simple operation.</p>
<p>Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to "backwash" the filter. Simply reverse the water flow and "knock out" the dirt. All Pentair sand filters feature a special internal design that keeps the sand bed level and ensures even water flow. That results in the most efficient filtration possible.</p>
Technical Specs
Plumbing: 1-1/2"
Filtration Area: 3.5 Sq Ft
Flow Rate: 75 Gallons per Minute
Turnover: 8 Hour - 36,000 Gallons / 10 Hour - 45,000 Gallons
Sand Required: 350 lbs
Filter Diameter: 26"
Vertical Clearance Required: 74"
Warranty: 1 Year Manufacturer's Warranty
