Product Overview
Quick Highlights
- Pentair part number 355026S
- 2 HP - Energy Efficient Motor
- Fits 2 Horsepower WhisperFlo WF-8 Pumps - Full Rated
- Fits 2.5 Horsepower WhisperFlo WF-30 Pumps - Up Rated
- Fits 2.5 Horsepower WhisperFloXF Pumps - Up Rated
- Fits 2.5 Horsepower 340041 SuperFlo Pumps - Up Rated
- Fits 2.5 Horsepower Pinnacle Pumps - Up Rated
- 56Y Frame
- Threaded Shaft
- 230 Volt
- 3450 RPM
- Single Speed
- Color: Almond (Tan)
- Capacitor Start
- Automatic Overload Protection
- Non-Reversible CCW
- Stainless Steel Shaft
- Factory original Pentair replacement part
Product Description

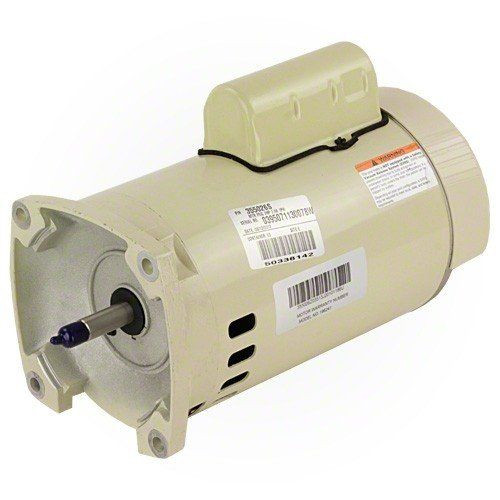

The Pentair 355026S Square Flange 2 HP Pool Pump Motor fits Pentair WhisperFlo WFE-8 pool pumps. It also fits WhisperFloXF 2 HP pumps, SuperFlo 2.5 HP pumps and Pinnacle 2.5 HP pumps. This motor is a high efficiency 230 Volt motor and is a factory original Pentair replacement part.
When replacing your pool pump motor you should always replace the shaft seal as well. The shaft seal is a 2 part piece made of rubber, metal and ceramic and keeps water from entering the pump motor. It is located near the impeller at the end of the motor shaft. Shaft seals vary between pumps so be sure to order the appropriate shaft seal for your pump.
IMPORTANT NOTE: Pumps and replacement motors that are single speed and one (1) HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. We recommend either a dual speed or variable speed pump for California residents.
Technical Specs
Motor: SQFL, 2 HP, 1 phase, 60 Hz
Part number: 355026S
Horsepower: 2 HP (WhisperFlo), 2.5 HP (SuperFlo, Pinnacle)
