Product Overview
Quick Highlights

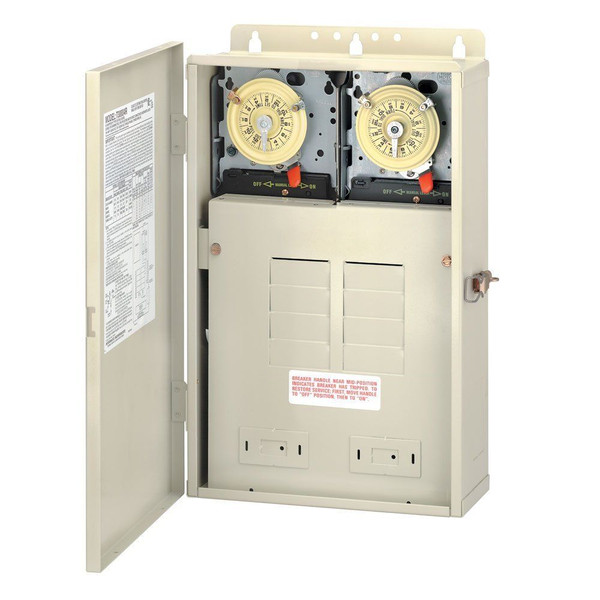

- Intermatic part number T30404R
- Dual 240V timers
- 100 Amp
- All-in-one electrical control center
- Custom wired for a wide variety of requirements
- Eliminates the need for additional junction boxes and service panels
- Reduces installation costs
- Easily maintain your pools and spas
- Filter Pumps
- Booster Pumps
- Heating Systems
- Lights
- Cleaning Systems
- Security Systems
- Fountains
- Sprinkler Systems
- Landscape or HID Lighting
Product Description
Applications:
Technical Specs
Case: 16-1/2" (41.9 cm) H x 10-7/8" (27.6 cm) W x 4-1/4" (10.8 cm) D, 0.048" steel with electrostatically applied beige finish.
Knockouts: Two 1/2", three combination 1/2"-3/4", and two combination 3/4"-1" knockouts on the bottom. Four 1/2", three combination 1/2"-3/4" on the back. One combination 3/4"-1" on the left side. One 1-3/4" x 2-3/4" knockout on the right side for mounting switches and GFCI.
Panel Rating: 100 Amp max., 120-240 VAC or 120-208 VAC single phase.
Timer Switch Rating: 40 Amp resistive each pole 120-240 VAC, 40 Amp Tungsten, inductive or 1000 VA pilot duty each pole 120-240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC DPST - DPST Switch
Agency Approval: CSA/C-US
