Product Overview
Quick Highlights

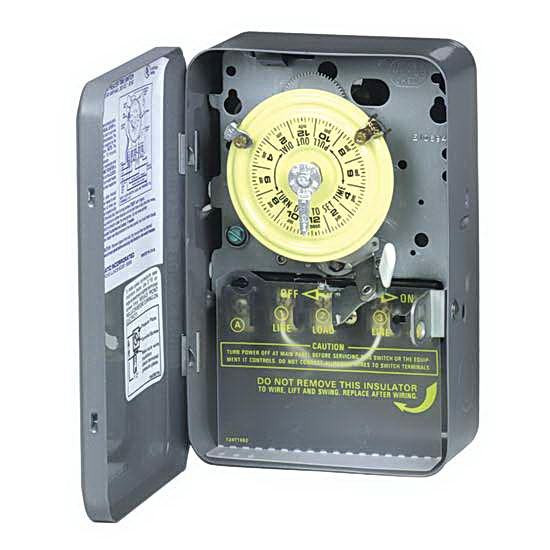

- Intermatic part number T106R
- Switches 2-speed pump motors between high & low
- Control up to a 10 HP motor
- Highest HP rating in the industry
- Provides 1 to 12 "ON/OFF" operations each day
- Equipped with one "ON" and one "OFF" tripper
- Includes manual override
Technical Specs
Each Pole; 40 Amp Resistive, 120-480 VAC
40 Amp Tungsten, inductive or 1000 VA pilot duty, 120-277 VAC
5 HP (28 FLA) 240 VAC single phase
7-1/2 HP (28 FLA) 208 VAC three phase
10 HP (28 FLA) 240 VAC three phase
