Product Overview
Quick Highlights
- Hayward model number W3SP2307X10
- Replaces SP2307X10
- Max-Flo XL inground pool pumps
- Advanced hydraulics improves efficiency and priming
- Seamlessly retrofits with the entire Max-Flo line
- All models include 1.5" x 2" union connections
- Self-priming (suction lift up to 8 feet of water level)
- Clear strainer cover to see when the basket needs cleaning
- Strainer cover seals with less than a quarter turn
- Pressure testable to 50 psi Max.
- Large leaf holding capacity strainer basket
- Heavy duty, high performance motor
- Elevated base insures better ventilation for cooler running
- Molded of corrosion-proof reinforced engineered plastic
- Easy access to all integral components by removing only 4 bolts
- Warranty - 1-Year Parts Only Warranty
Product Description

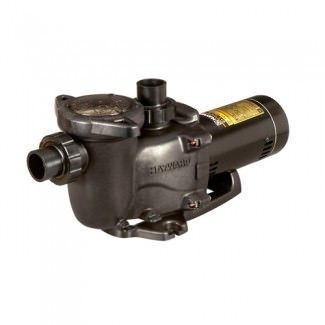

<p>The Hayward Max-Flo XL Pool Pump is the latest addition to the proven Max-Flo line. It's the ideal self-priming, medium-head pump for entry-level new construction and aftermarket applications. Max-Flo XL features advanced hydraulics delivering the performance and reliability pool pros need, while its silent operation, conveniences and exceptional value will make it a favorite with pool owners.</p>
<p>The Hayward W3SP2307X10 Max-Flo XL is a versatile 1 horsepower pump for in-ground pool applications. It features a dual voltage motor for 115V or 230V power and can be used with 1.5 inch and 2 inch plumbing.</p>
<p><span>IMPORTANT NOTE: Pumps and replacement motors that are single speed and one (1) HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. We recommend either a dual speed or variable speed pump for California residents.</span></p>
Technical Specs
Model: W3SP2307X10
Max Rated
Single Speed

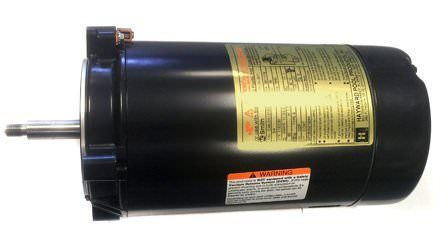

AO Smith electric-motor
Voltage: 115/208-230
60hz
Union Connections: 1-1/2" x 2"
Service Factor: 1.25
Total HP: 1.25
Weight: 37 lbs
