Product Overview
Quick Highlights
- Replaces:Â HAYW3S220T
- Flange clamp has 360 degree rotationg valve to simplify plumbing.
- Integral top diffuser ensures even distribution of water over sand.
- Full size internal piping for smooth free-flowing performance.
- Unitized corrosion-proof filter tank molded of polymeric material
- 6-position Hayward Vari-Flo control valve
- Integral sight glass lets you see when backwash cycle is finished.
- Efficient multi-lateral under drain assemblyÂ
- 360 degree slotted self-cleaning lateralsÂ
- Integral molded drain plug for easy draining of tank
- 1-Year Parts Only Warranty
Product Description

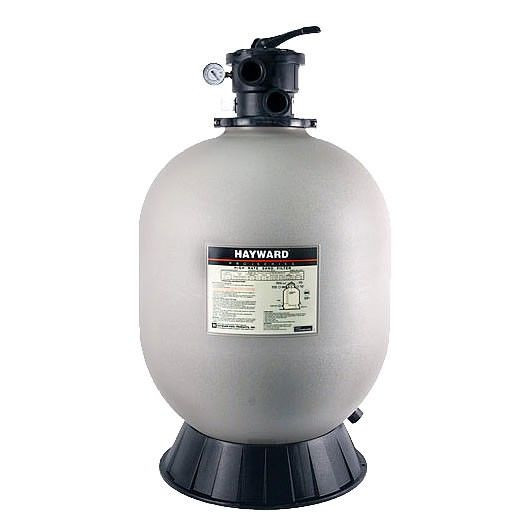

<p>The <strong>Hayward W3S220T Sand Filter</strong> is built with a top diffuser which evenly distributes water over the sand providing the best filtration possible while the self cleaning 360 degree laterals provide an efficient flow of clean water to your pool and more thorough backwashes. The S220T includes an easy to use top mount multiple position valve allowing for efficient and simple operation. The filter operates for shorter periods of time with it's full-flow technology ultimately saving you money. Built to last, Pro Series Sand Filters are molded with durable, corrosion-proof reinforced thermoplastic.</p>
Technical Specs
- Dimensions: 22½”W x 41”H
- Sand Required: 250 lbs
- Turnover: 8hrs=24,960 Gallons, 10hrs=31,200 Gallons
- Flow Rate: 52 GPM (Gallons Per Minute)
- Filter Type: High-Rate Sand: No. ½ Silica Sand (.45 mm - .55mm)
- Filter Tank: Molded Polymeric
- Underdrain: 360º Self-Cleaning Slotted Laterals, Precision-Installed in Ball Joint Assembly
- Control Valve: 1 ½” or 2” 7-Position, Top-Mount Vari-Flo™ with Lever-Action Handle
- Valve Fastening: Flange Clamp Design
- Support Base: Injection-Molded Polymer
