Product Overview
Quick Highlights

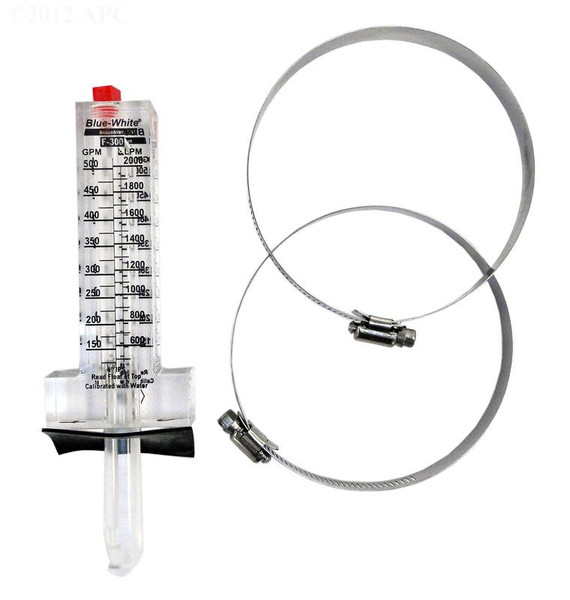

- Blue-White Industries part number F-30400P
- For horizontal flow only
- For 4" PVC Pipe
- Flow Range: 75 to 420 GPM (previously 125-500 GPM)
- Dual GPM/LPM scale printed on both sides of the meter
- Corrosion resistant 316SS or Teflon internal float materials
- One piece machined acrylic body
- Mounts to existing pipe - No unions or adapters required
- Mounting clamps and gasket included
- Must be mounted at the vertical (twelve o'clock) position
- Must be mounted on horizontal pipe only
- The pipe must be completely full of water at all times
- The meter can accurately measure flow from one direction only
Product Description
The Blue-White Industries F-30400P Flowmeter for 4" PVC is for horizontal flow only and has a flow range of 125 to 500 gallons per minute. The Pilot tube (impact tube) design makes it easy to install the F-300 Series meters on existing pipe and it is acceptable for outdoor installations (direct sunlight is okay). Each flowmeter includes stainless steel clamps and corrosion resistant internal components.
Technical Specs
Meter Body: Cast Acrylic
Float: Standard range models = 316SS - Low range models = Teflon
Gasket: Neoprene
Pipe Clamp: 300 series Stainless Steel
Pitot screw: 1Â thru 2Â models only - 300 series stainless Steel
Pipe Requirements: IPS inch pipe size (ASTM-D-1785)
Max. Psi (bar): 150 PSI (10.3 bar) @ 70 F (21 C)
Max. fluid temp.: 190 F (88 C) @ 0 PSI
Max. ambient temp.: 14 to 110 F/ -10 to 43 C
Installation:
Minimum Straight Pipe Length Requirements - The meter's accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy is 10 times the nominal pipe diameter before the meter and 4 times the nominal pipe diameter after the meter.
