Product Overview
Quick Highlights
- Blue-White Industries part number D-30200P

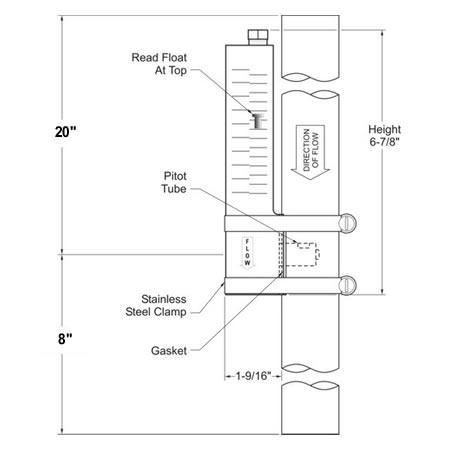

- For downward vertical flow only
- For 2" PVC Pipe
- Flow Range: 20 to 120 GPM (Sch 40 PVC)
- Dual GPM/LPM scale printed on both sides of the meter
- Corrosion resistant 316SS clamps
- Neoprene internal float gasket
- One piece machined acrylic body
- Mounts to existing pipe
- Mounting clamps and gasket included
- Must be mounted on vertical pipe only
- The pipe must be completely full of water at all times
- The meter can accurately measure flow from one direction only
- 10 times the pipe diameter before and 4 times the pipe diameter after is required
Product Description
Technical Specs
Pipe: 2" PVC
Flow: 20 to 120 GPM
Direction: Vertical - Downward Only
