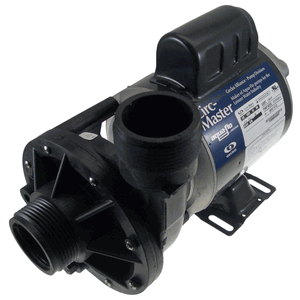

Aqua-Flo Circ-Master CMHP Spa Circulation Pump 1/15 HP 115V - 02093000-2010

Aqua-Flo

(No reviews yet) Write a Review
$249.99
SKU:
AQF-10-391
UPC:
0852673912629
Delivery:
2-5 Business Days
Pump Horsepower:
1/15 HP
Pump Speed:
Single Speed
Voltage:
115 Volt
Manufacturer Part Number:
02093000-2010
Adding to cart… The item has been added

Product Overview

Quick Highlights

  • Aqua-Flo part number 02093000-2010
  • Circ-Master CMHP spa circulation pump
  • 1.5" Inlet and outlet plumbing connections
  • Single Speed
  • Side Discharge
  • Includes Unions
  • 1/15 Horsepower
  • 115 Volt
  • 48 Frame motor
  • Permanently lubricated ball bearings
  • Carbon-graphite self-lubricating seal
  • Quick release compression fittings for easy installation
  • Very low energy consumption - roughly 1.3 Amps
  • Up to 80 Gallons per minute flow rate

Product Description

<p>The Aqua-Flo 02093000-2010 Circ-Master Spa Circulation Pump has the highest GPM in the industry and takes around the clock filtration to a new level. These pumps have an efficient flow rate of 80 Gallons per Minute and have a very low amperage draw resulting in lower electricity consumption levels. The higher GPM means a higher flow rate which allows the Circ-Master to operate a high-flow heating system with increased efficiency and up to four times the filtration of the competition. Circ-Master pumps will also operate standard or low-flo heating systems with increased reliability making this pump extremely versatile.</p> <p>The Aqua-Flo Circ-Master CMHP Pump has a side or offset discharge on the top of the pump and comes complete with quick release compression fittings which makes installation and maintenance very simple. The upgraded carbon-graphite self-lubricating shaft seal is designed for continuous duty provides a high level of performance in any condition.</p> <p><span style="text-decoration: underline;">Replaces the following pumps:</span></p> <p>02410362-2 Leisure Bay<br />02093430-2<br />02097616-1 M-HK2R001<br />02093636-2<br />02093635-2<br />02093641-2 Clear Water Spas<br />02093635-2<br />02093645-2<br />02093460-2<br />02093<br />02093637-2 Wet end must be turned to the 9'o clock position<br />1-00-0154<br />9352-9302<br />9352-9303-A</p>

Technical Specs

Suction Connection Size: 1-1/2"
Suction Connection Type: Male Buttress Thread (mbt)
Discharge Connection Size: 1-1/2"
Discharge Connection Type: Male Buttress Thread (mbt)
Horsepower: 1/15 HP
Speed: 1-speed
Spa Pump Model: Circ-Master CMHP
Motor Voltage: 115V
