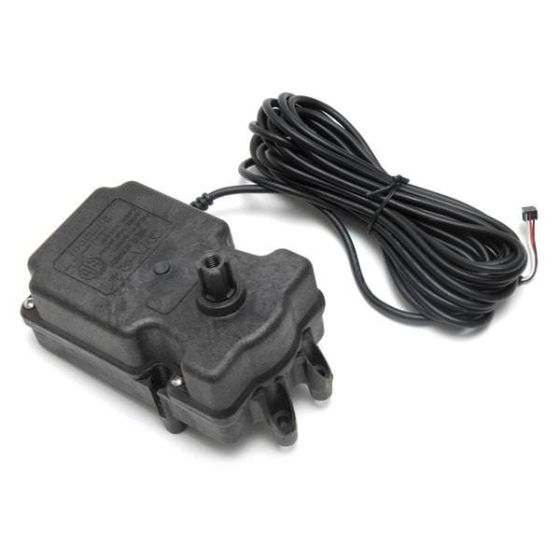

Pentair 3 Way Valve Actuator 24V CVA24T - 263045
The Pentair / Compool 263045 CVA24T Valve Actuator offers a convenient alternative to manually turning 3 way pool plumbing valves. By automating plumbing arrangements with a Pentair Valve Actuator, you can make even the most complex pool plumbing arrangements easy-to-use and hassle-free. This valve actuator is designed for use with 3-port valves and is compatible with Pentair, Compool, Jandy and Ortega valves. Pentair valve actuators features maximum torque and a 24 VAC bi-directional motor. They work with all automation systems including EasyTouch, IntelliTouch, SunTouch as well as Hayward and Jandy systems.
| Delivery Time | 2-5 Business Days |
|---|---|
| Manufacturer | Pentair |
| Technical Specs | INSTALLATION: Remove Knob, Handle and four screws from the Valve Cover. Align splines of CVA-24 shaft over shaft of Valve. If CVA-24 is not aligned with mounting holes on Valve Cover, rotate CVA-24 (while still attached to Valve) until CVA-24 is positioned correctly over Valve. Use the 4 mounting screws provided to mount CVA-24 to Valve Cover. Mount Valve Handle and Knob to CVA-24. Connect cord into Power Center circuit board at appropriate Valve Actuator socket. |
| SKU | COM-30-699 |
| Manufacturer Part # | 263045 |
Product Features
- Designed for 3 port valves
- 180 Degree rotation
- Prevents dead-heading of pumps
- Corrosion-proof enclosure
- Includes 25 foot cable
- Service switch for flow direction
- ETL Recognized
- For use with EasyTouch, IntelliTouch and more
- UL listed for use with IntelliTouch systems
- Operates Pentair Compool, Ortega & Jandy Valves
- Compatible with all 24VAC Control Systems
In stock
$229.99
